Analog Reading Project

Components Required

Description

An Arduino Uno project that reads analog sensor values from a pin and converts them into voltage for monitoring via Serial output.

Watch Video

Watch on YouTube

Arduino Code

/*
   Led blinking project

   Components:
     - Arduino UNO
     - Potentionmeter
     - Breadboard
     - Jumber wire
     Author: Circuit Creation RN

*/

#define pin A0

float read_value;
float voltage;

void setup() {
  Serial.begin(9600);
  pinMode(pin, INPUT);
}

void loop() {
  read_value = analogRead(pin);
  voltage = (read_value * 5.0) / 1023.0;
  Serial.println(voltage);
  delay(1000);
}

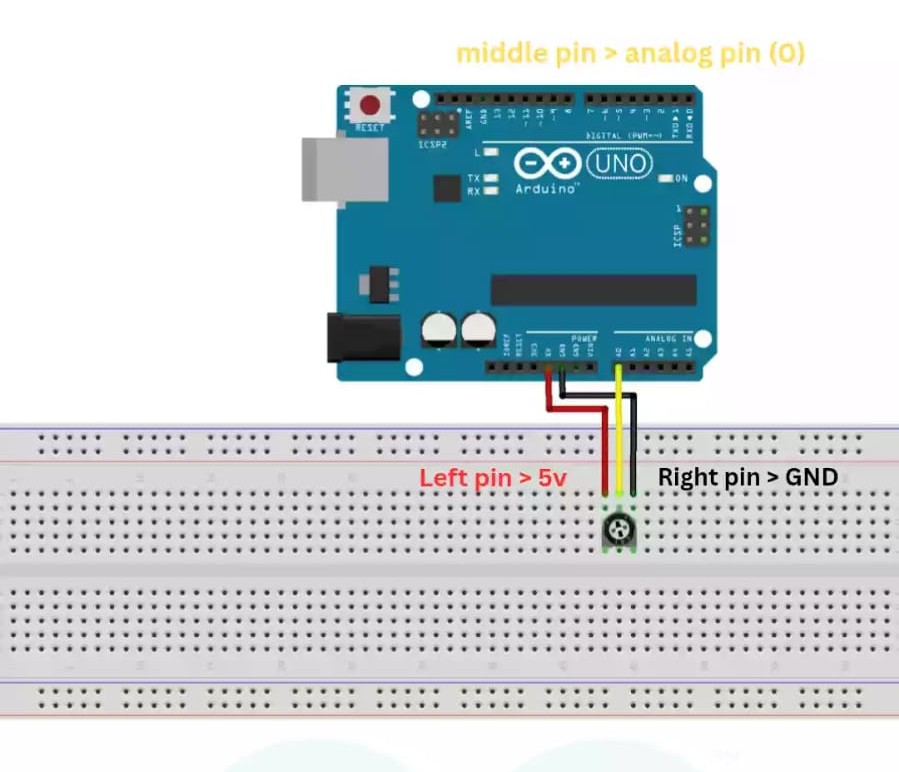

Circuit Diagram



Download Diagram
