LED Flasher Using IC 555

Description

This LED Flasher project uses IC 555 timer to blink LEDs continuously in a flashing pattern. It is a simple and beginner-friendly electronics project for learning timer circuits and LED control.

Components Required

• 9V Battery
• IC 555 Timer
• LEDs
• 470Ω Resistor
• 10k Resistor
• 1k Resistor
• 100µF Capacitor
• 103 (0.01) Capacitor
• Breadboard
• Jumper Wires

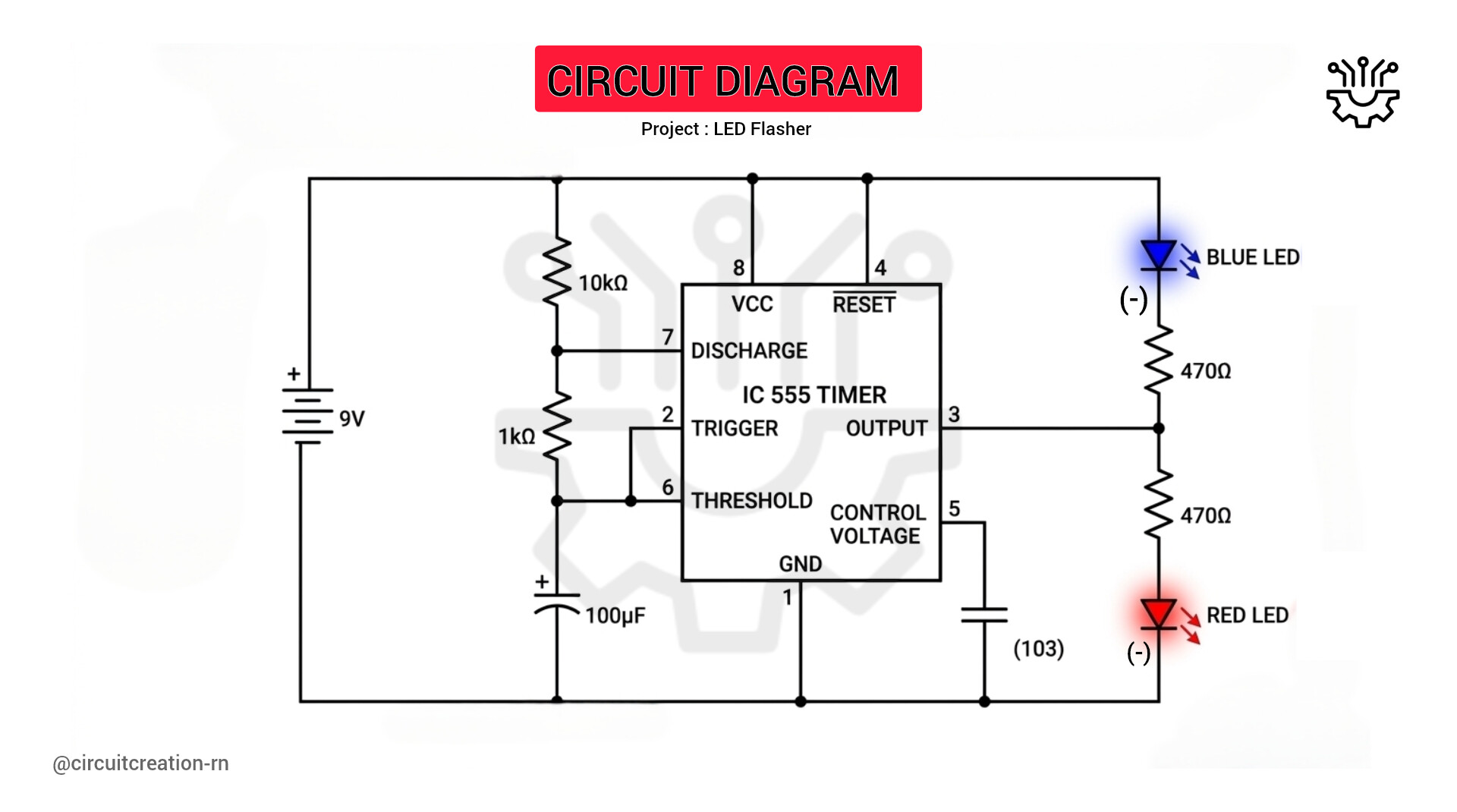

Circuit Diagram

Project Working

The IC 555 timer works in astable mode and generates continuous pulses automatically.

These pulses switch the LEDs ON and OFF repeatedly, creating a flashing LED effect.

The flashing speed can be adjusted by changing the resistor or capacitor values in the circuit.

Learning Outcome

• Understand IC 555 timer working
• Learn astable multivibrator circuits
• Learn LED flashing circuits
• Improve breadboard connection skills

Common Mistakes

• Wrong IC 555 pin connection
• Reverse LED polarity
• Loose breadboard wiring
• Incorrect resistor values
• Weak battery connection

FAQ

Why are LEDs not blinking?

Check the IC 555 pin connections and capacitor polarity properly.

Why are LEDs very dim?

Check resistor values and battery condition.

Can I use more LEDs?

Yes, multiple LEDs can be connected with proper resistors.
